The General Instruments  RO-3-9316  Masked ROM

(As used in the Apple II motherboard, circa 1978.)

20190120 Scanned by TerraHertz Download as RARbook http://everist.org Parent article

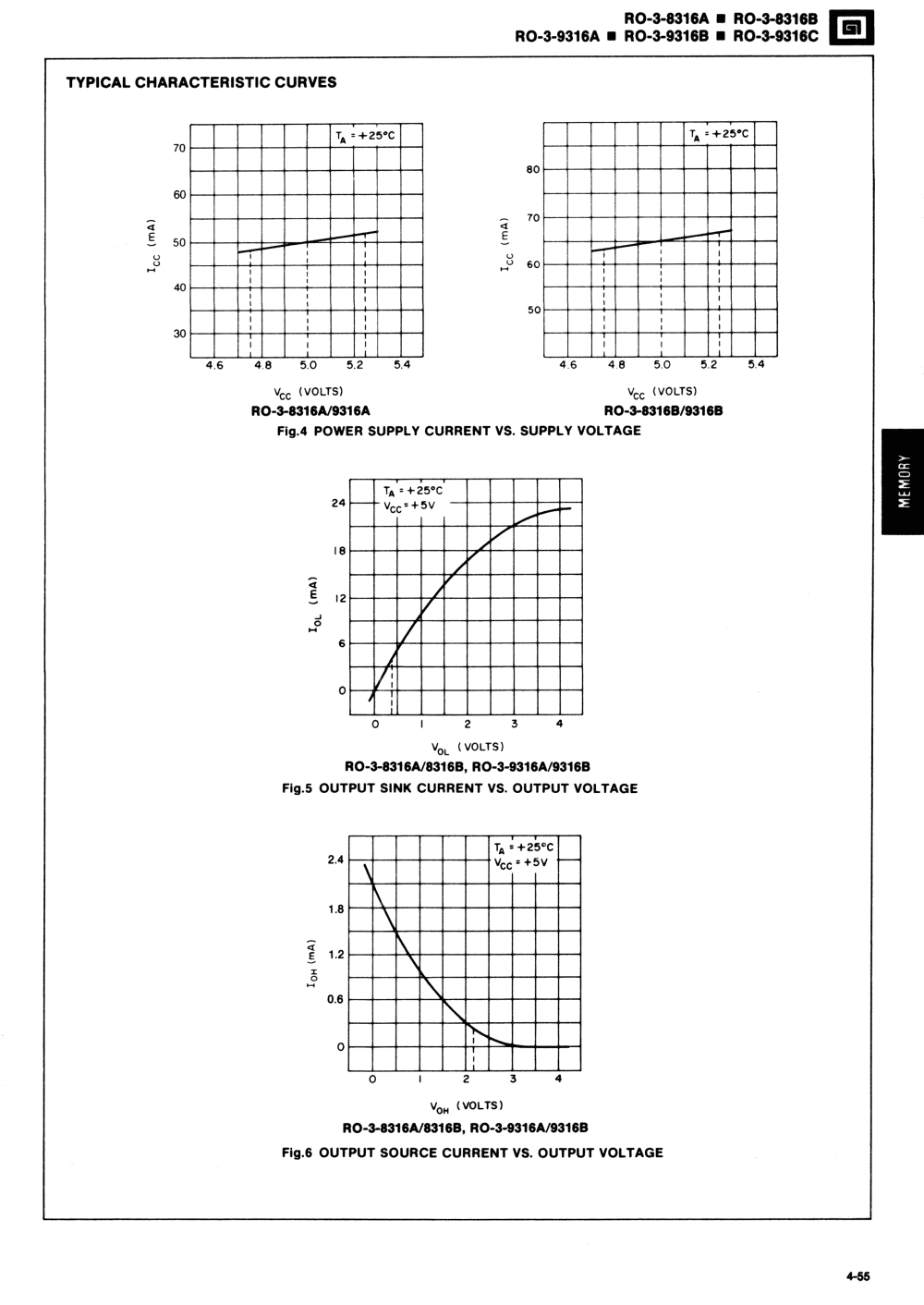

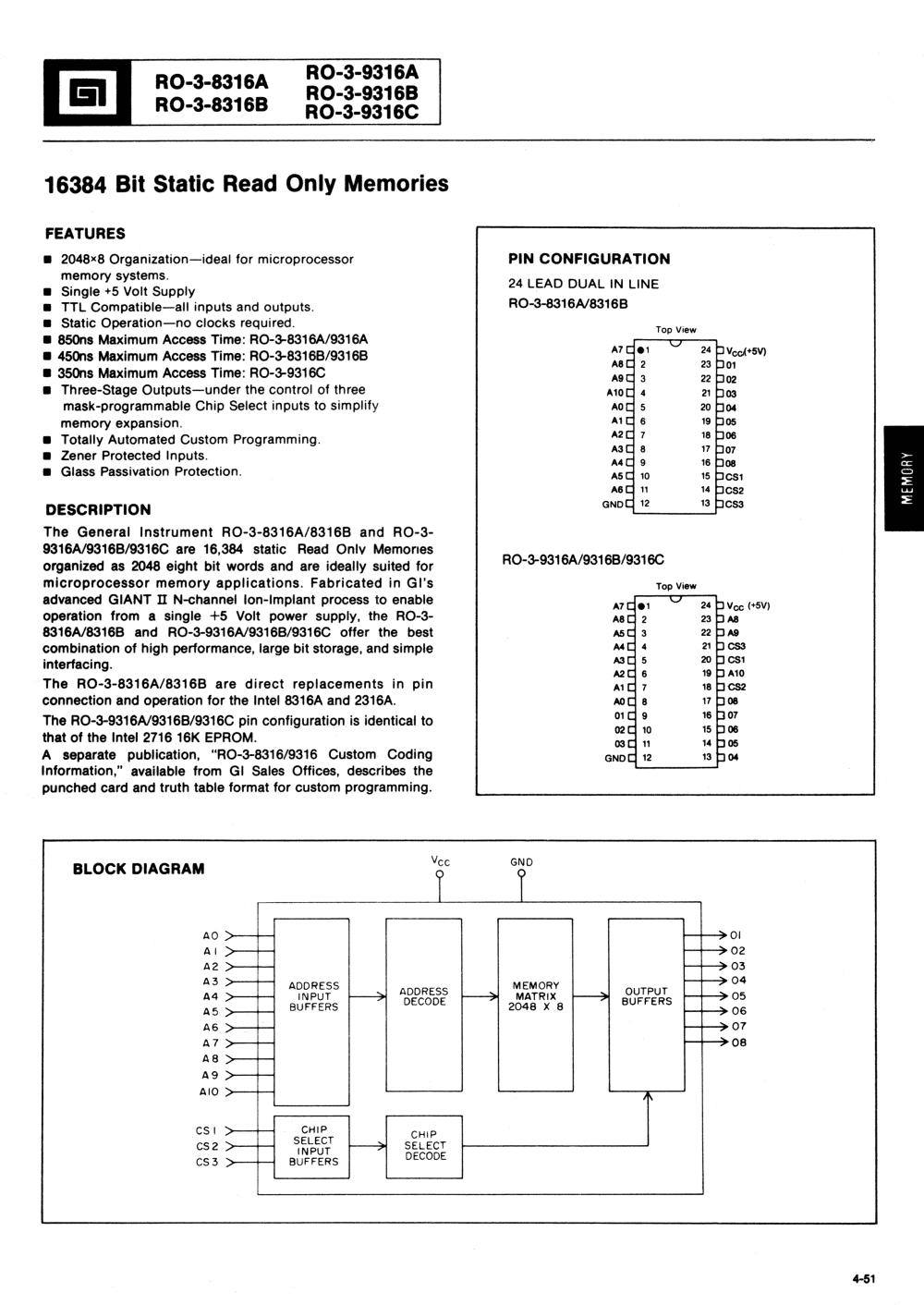

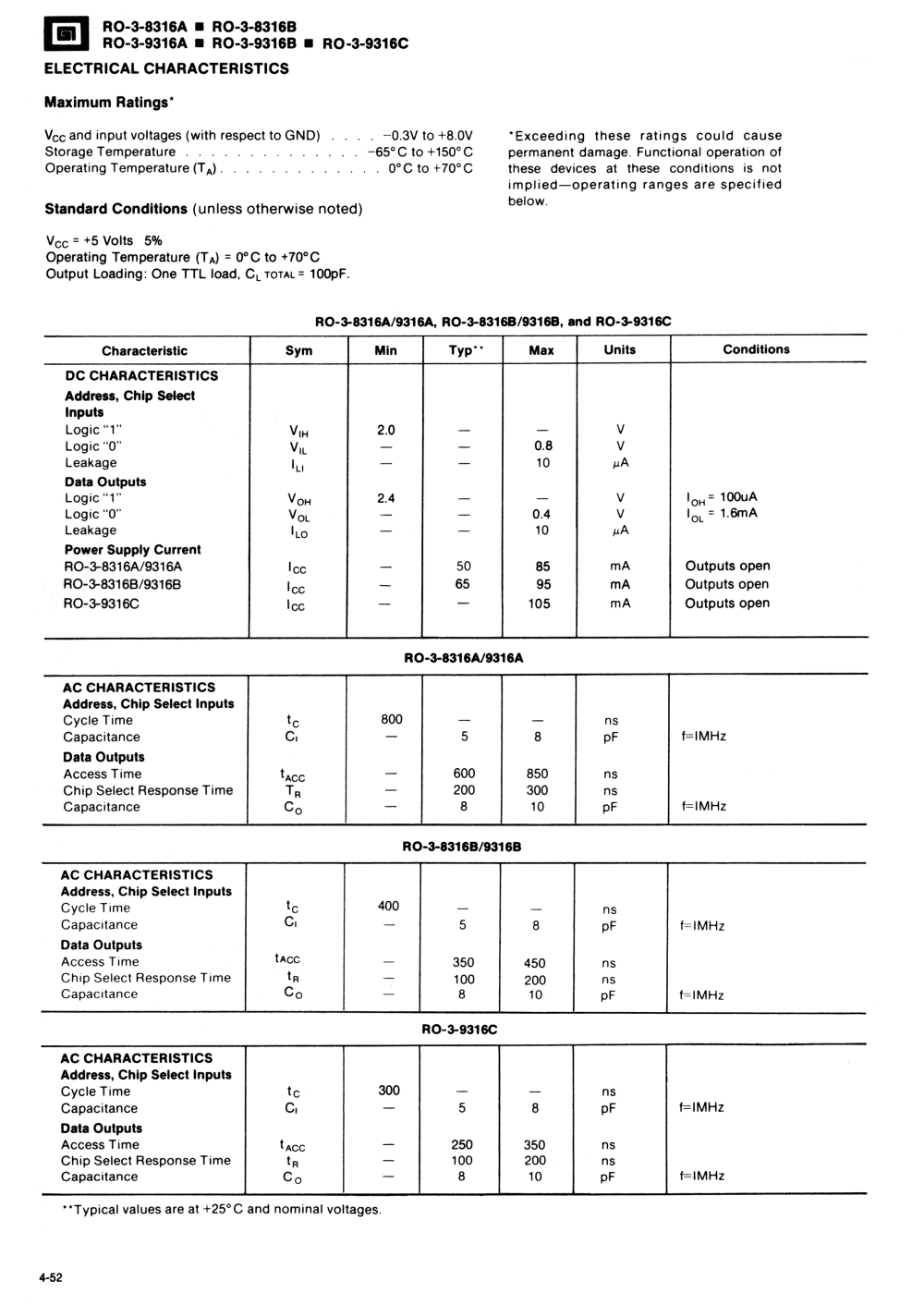

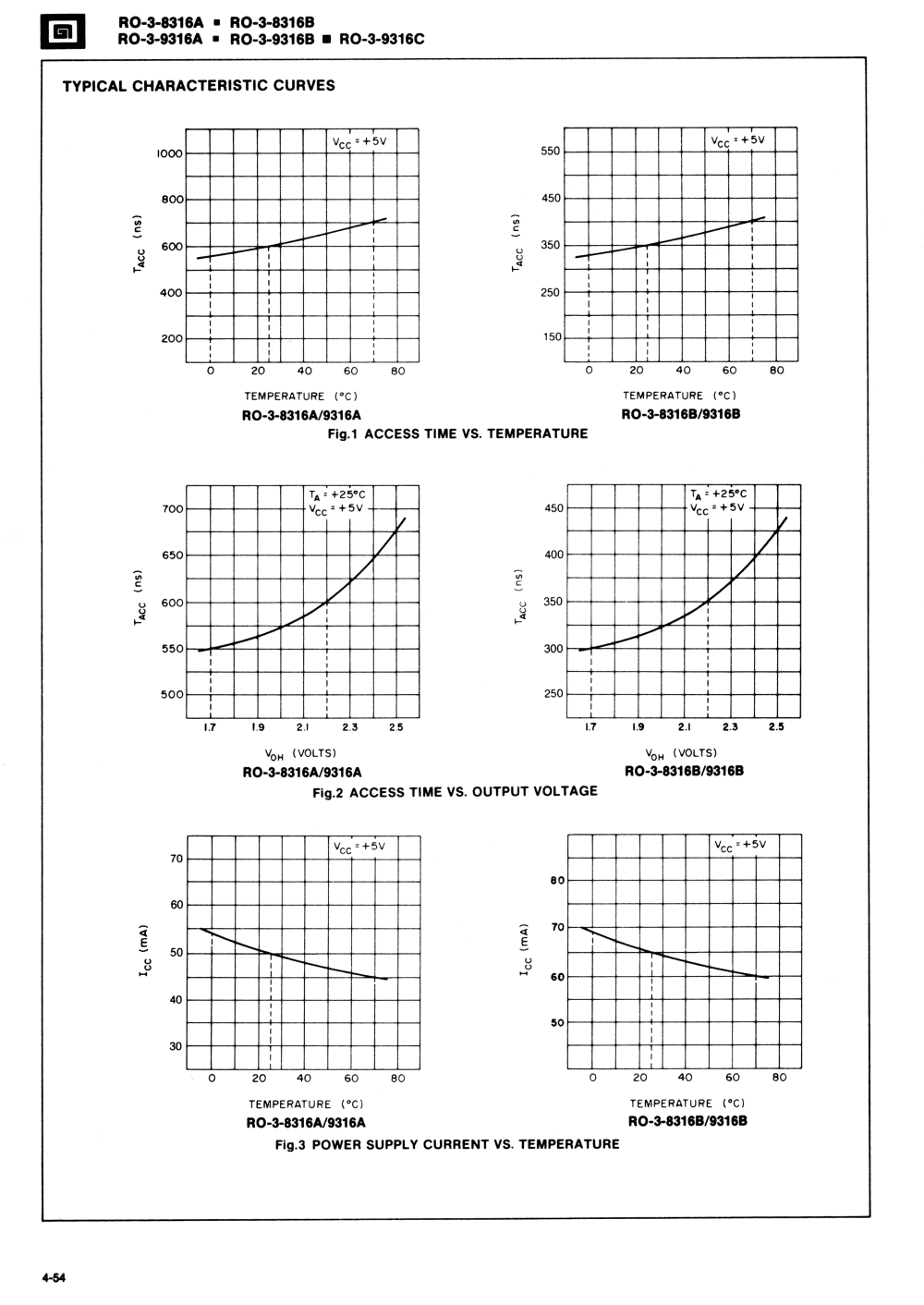

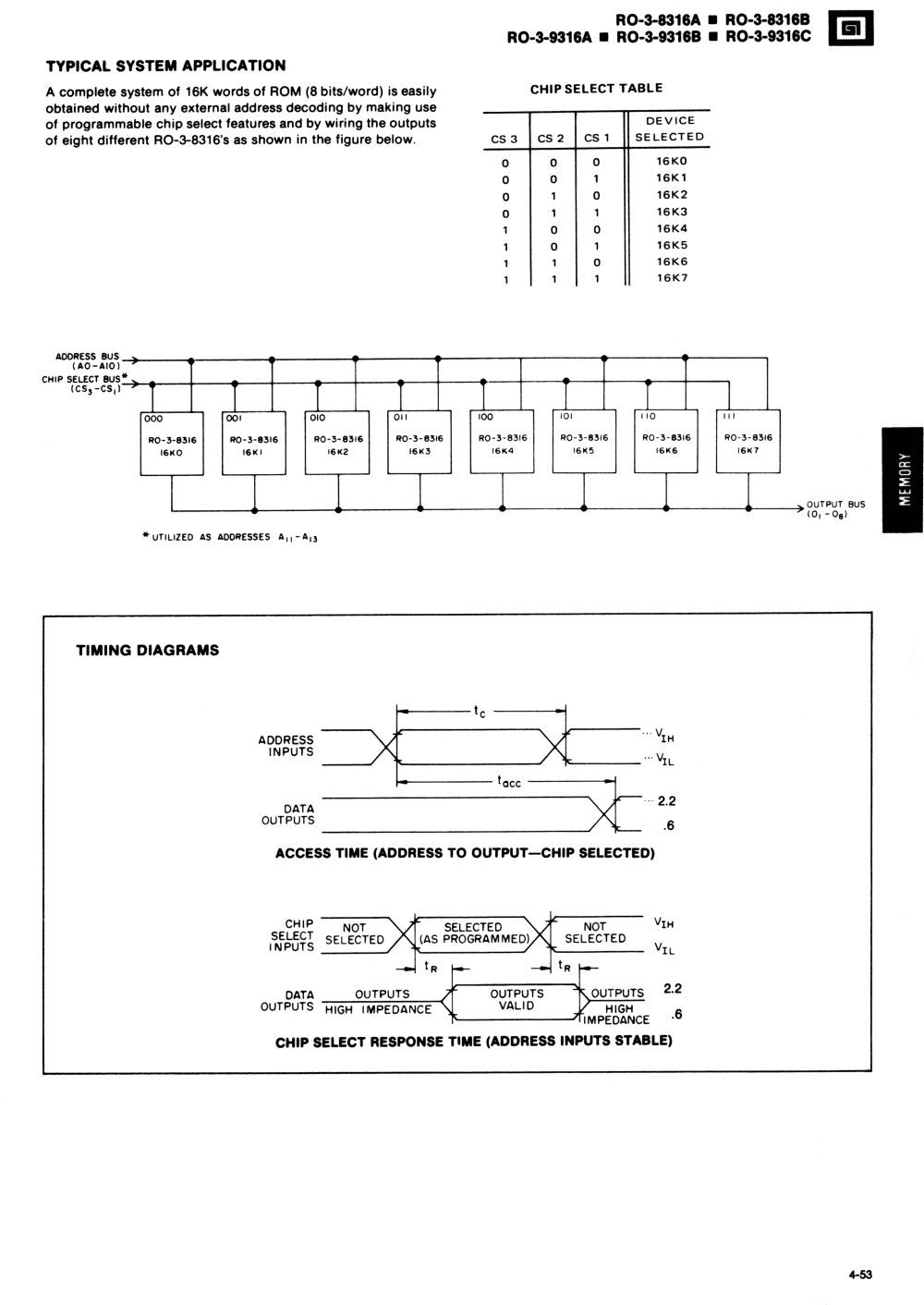

The following are pages 4-51 through 4-55 from the GI 1978 databook
